product

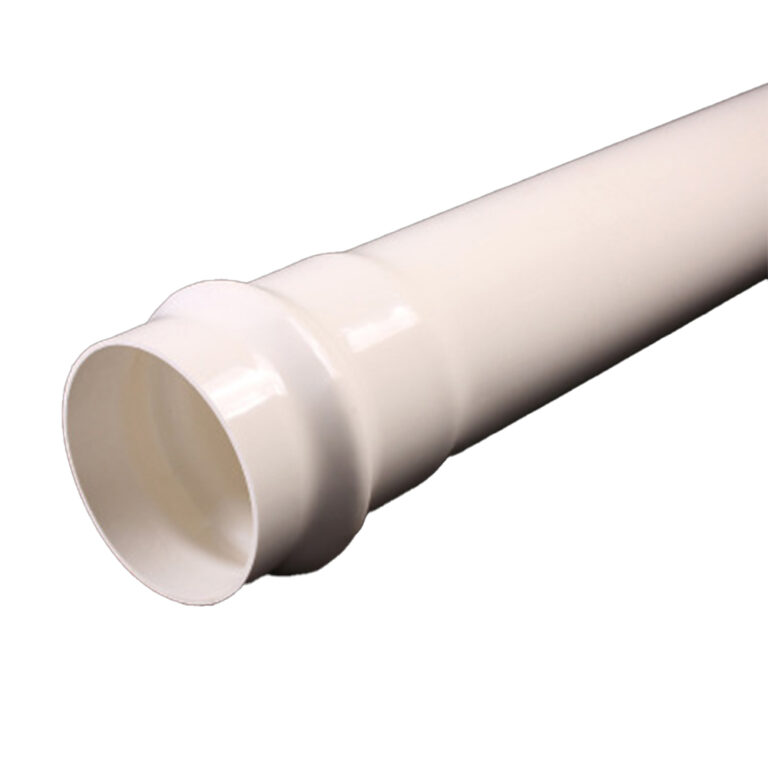

UPVC Pipe is a type of pipe made from polyvinyl chloride (PVC) and is used in a variety of different applications. It can be used in pipeline systems that transport liquids, gases, solid particles or chemicals.
| PVC PIPE | |||||||
| GB/T 10002.1-2006 | |||||||
| 0ut Diameter DN(mm) | Wall Thickness (mm) | ||||||
| 0.6mpa | 0.8mpa | 1.0mpa | 1.25mpa | 1.6mpa | 2.0mpa | 2.5mpa | |
| 20 | 2.0 | 2.3 | |||||
| 25 | 2.0 | 2.3 | 2.8 | ||||
| 32 | 2.0 | 2.4 | 2.9 | 3.6 | |||
| 40 | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | ||
| 50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | |
| 63 | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
| 250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
| 280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
| 315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | |
| 355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |
| 400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |
| 450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | |
| 500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |
| 560 | 13.7 | 17.2 | 21.4 | 26.7 | |||
| 630 | 15.4 | 19.3 | 24.1 | 30.0 | |||
| 710 | 17.4 | 21.8 | 27.2 | ||||
| 800 | 19.6 | 24.5 | 30.6 | ||||
Maintenance of UPVC Pipe is relatively simple, usually requiring only regular inspection and cleaning of the pipes to ensure there are no blockages or breaks. If problems are found, such as leaks or cracks, they should be repaired or replaced in time.
Yes, UPVC Pipe can be used in water supply systems. However, appropriate UPVC Pipe should be selected according to local water supply standards and regulations, and ensure compliance with safety and hygiene requirements.
UPVC Pipe is safe during normal use and handling. However, when UPVC Pipe is incinerated or improperly handled, harmful gases and substances may be produced, so correct handling methods should be followed.
Design a suitable pipeline system for the drainage projects of coal mines to provide effective drainage, connection, water diversion and dehydration, and improve the efficiency and stability of the coal mines.
Mongolia is a country with a well -developed animal animal husbandry. I am honored to participate in the development of Mongolia agriculture. After the project is completed, it will be greatly enriched to the tables for the people of the Mongolian people to improve the lives of Mongolian farmers and help and enhance the happiness index of the Mongolian people.
Dredging the Maldives Marine Waterway, maintaining the smooth flow of Maldives and improving the efficiency of ports, it is of great significance for the economic development and use of marine resources.
JS’s hot fusion welding machines and electric fusion welding machines are suitable for pipe welding of different materials, including high-density polyethylene (HDPE), polypropylene (PP) and polyvinyl chloride (PVC), etc. This enables our equipment to meet the welding needs of different pipelines in Rooppur Nuclear Power Plant Project.
